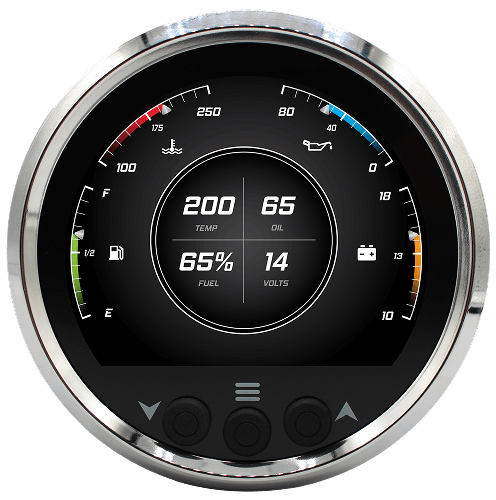

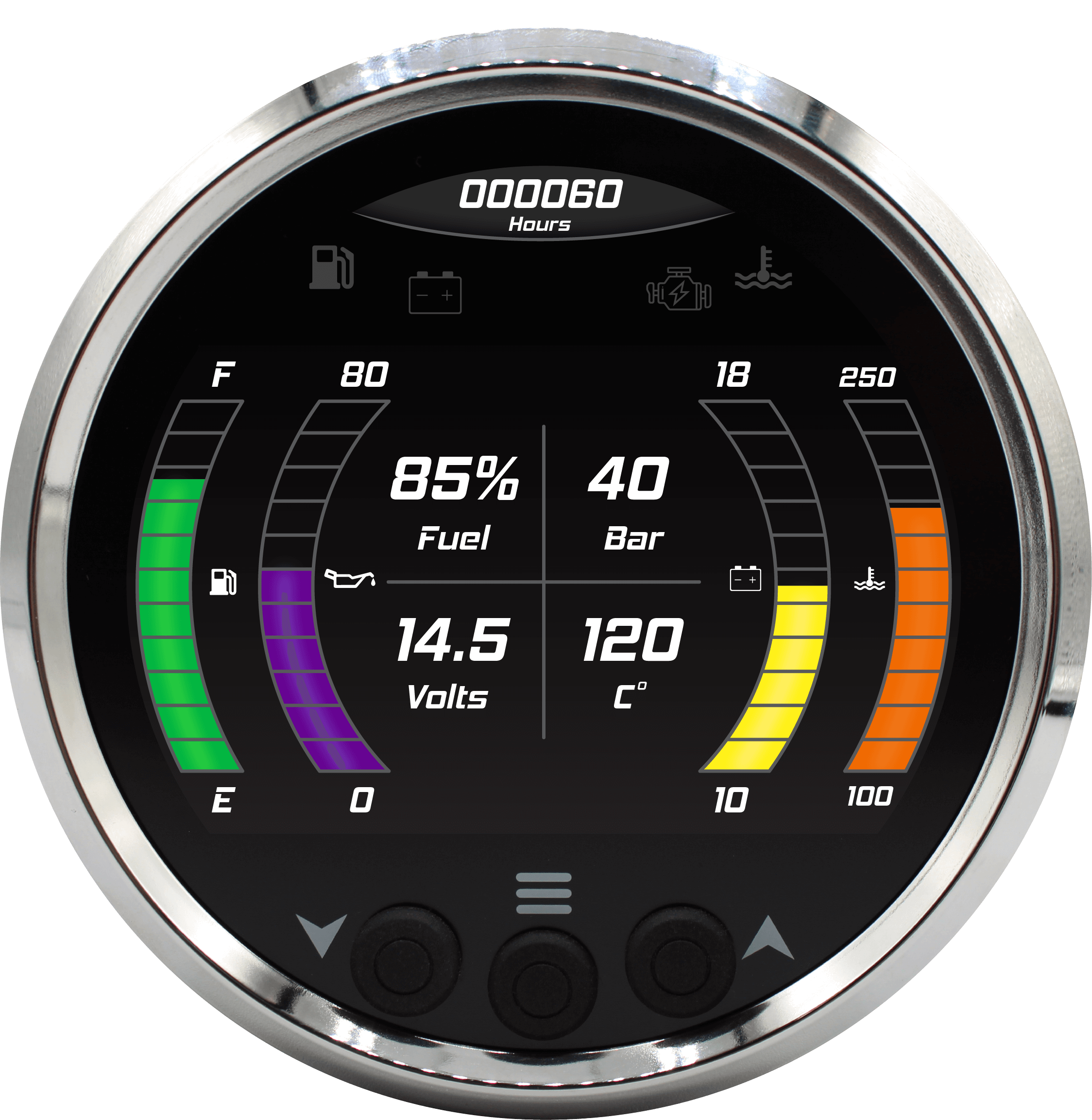

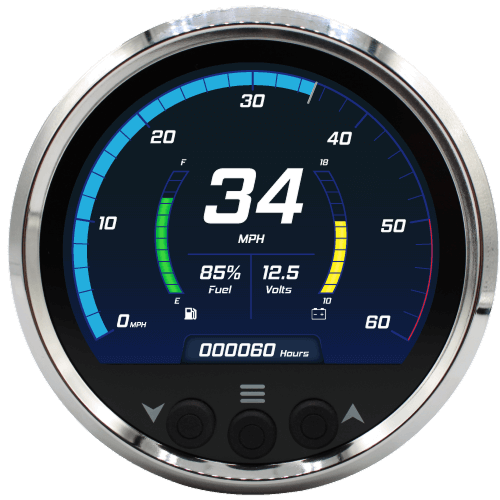

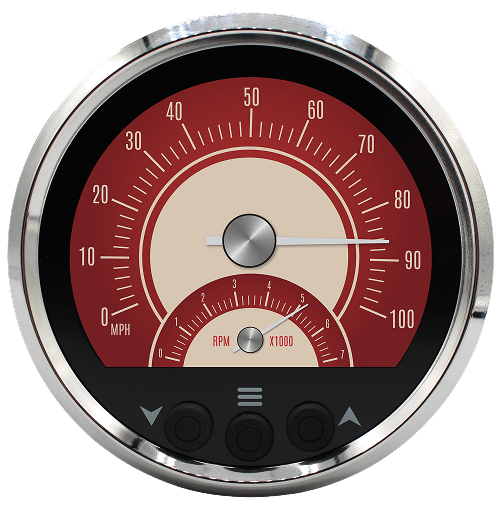

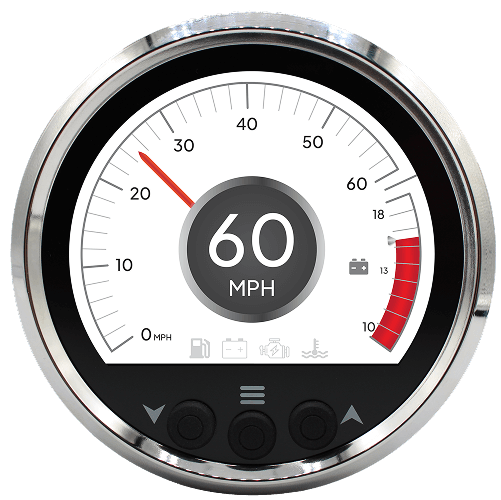

5” Digital Display
The MG5K is a next-generation 5″ touchscreen display designed for modern marine and industrial applications. With customizable interfaces, intuitive navigation, and seamless integration with your vessel or vehicle systems, it delivers critical data at a glance. Engineered for reliability in harsh environments, the MG5K combines rugged durability with sleek design, offering performance and style that enhance any dashboard.
Provides fast, reliable data transfer and easy connectivity.
Enables seamless wireless updates and device pairing.
Delivers accurate speed and location data in real time.
Ensures clear visibility even in direct sunlight.
Built to withstand water, dust, and extreme conditions for maximum durability.
USB Type-C Connector for Softwar Updated & User Configuration
• Wi-FI & Bluetooth Communication
• GPS Receiver for Speedometer Applications
• Touchscreen for Ease of Use
• 3 Physical Buttons for Additional Control
• Space Saving Instrumentation
• IP69K Rated to Withstand The Harshest of Environments
• 1000 Nit Sunlight Readble Display
• 180° Viewing Angle
• CAN Bus Communication
▪ J1939
▪ NMEA2000®
▪ SmartCraft®
• 6 Software Configurable Inputs
▪ Discrete Input (active low)
▪ Discrete Input (active high)
▪ PWM (input capture)
▪ Analog Input
▪ Resistive (sender) Input
| Feature | Criteria / Description |
|---|---|
| Mounting Hole (Dia) | 4.4″ (Supports up to 0.5” Panel Thickness) |
| LCD Display | 3.54″ Round TFT, 800×640 Resolution |
| Touch Type | Capacitive Touch |
| Brightness | 1000 NIT |
| Ambient Light Sensor (ALS) | Standard |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Water Intrusion Protection | IP69K Rated |
| Vibration | Per MIL-STD-202, Method 201 |
| Shock | Drop per SAE J1211 & MIL-STD-202, Method 213 |
| Salt Fog | 48 Hours per ASTM B117-73 |
| Chemical Resistance | ISO 16750-5, Mounting Code B |
| UV Exposure | 1000 Hours per SAE J2527, Table 2 |
| Input Voltage | 9 to 32 VDC |
| Current Consumption | 350 mA typical @ 12 VDC (base unit) |
| Reverse Polarity Protection | Yes |
| Under/Over Voltage Protection | Indefinitely at 0 and 60 VDC |
| Voltage Transient Protection (Load Dump) | 160 VDC Positive (MIL-DTL-10986G, 4.4.16) 160 VDC Negative (MIL-DTL-10986G, 4.4.17) |
| Wi-Fi + Bluetooth (Optional) | 2.4 GHz Wi-Fi (802.11 b/g/n) Bluetooth 5 (LE) |
| User Buttons | 3× Physical Buttons Below Display Active Area |
| Required Mating Connector | 1× Deutsch DT06-12SA or Amphenol AT06-12SA |
| System Type | Embedded, STM32 Microcontroller |
| Memory | 8M Additional Flash for Graphics |
| Inputs (6× Software Configurable) | • Discrete (active low/high) • PWM (10 Hz – 5000 Hz, ±1%) • Analog (0–40 VDC, ±0.2 VDC) • Resistive (0–1200 Ω): o <50 Ω → ±1 Ω accuracy o 50–500 Ω → ±2% accuracy o >500 Ω → ±10% accuracy |
| Outputs | 2× Open/Ground (Low-side) @ 1A |
| CAN Interface | 1× CAN FD @ 250 & 500 Baud Supports J1939, NMEA 2000®, SmartCraft® |
| GPS Reception | Optional |
| IMU (Accelerometer/Gyro) | Optional |
| Compliance | RoHS, REACH, FCC, CE |
