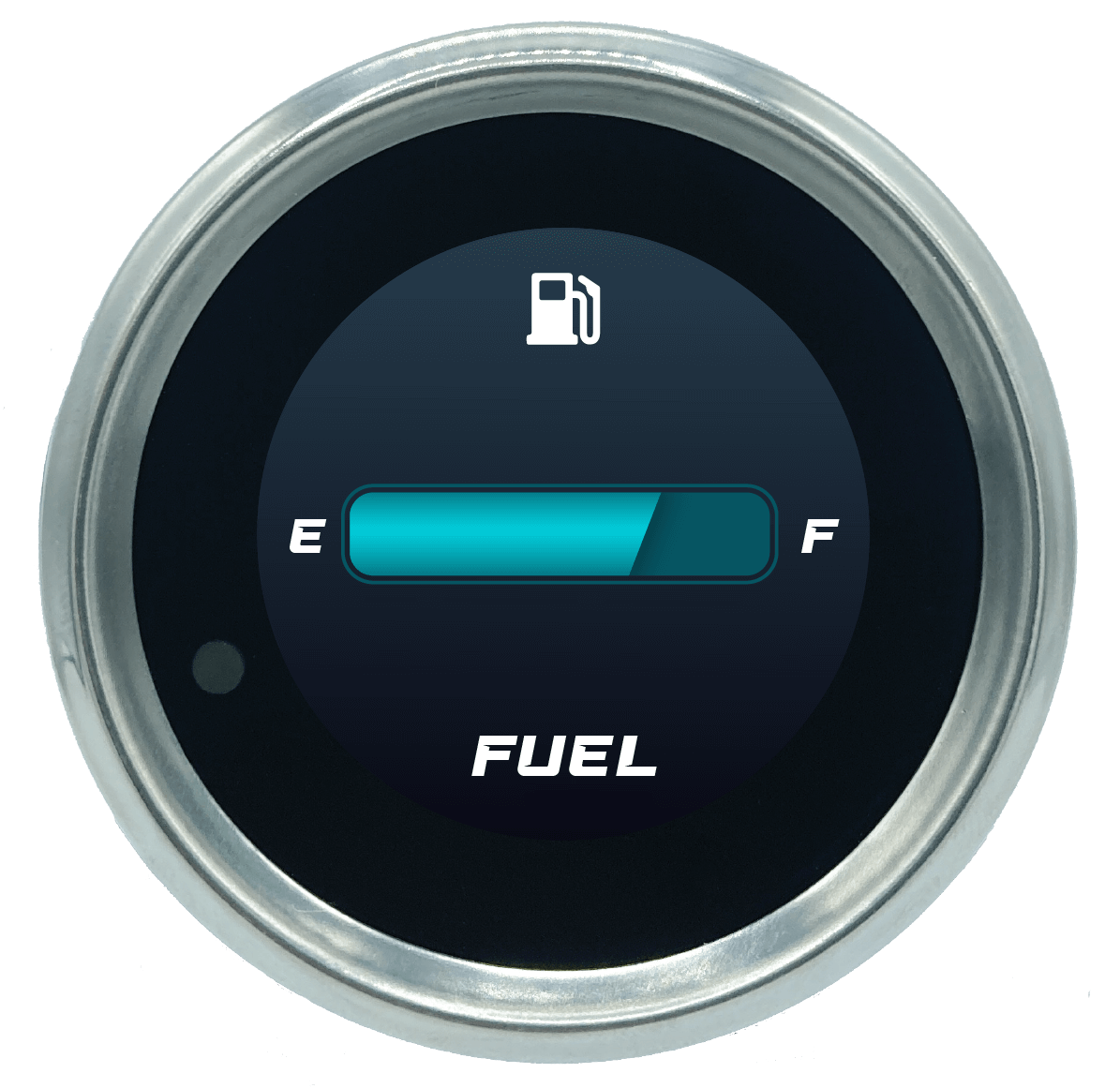

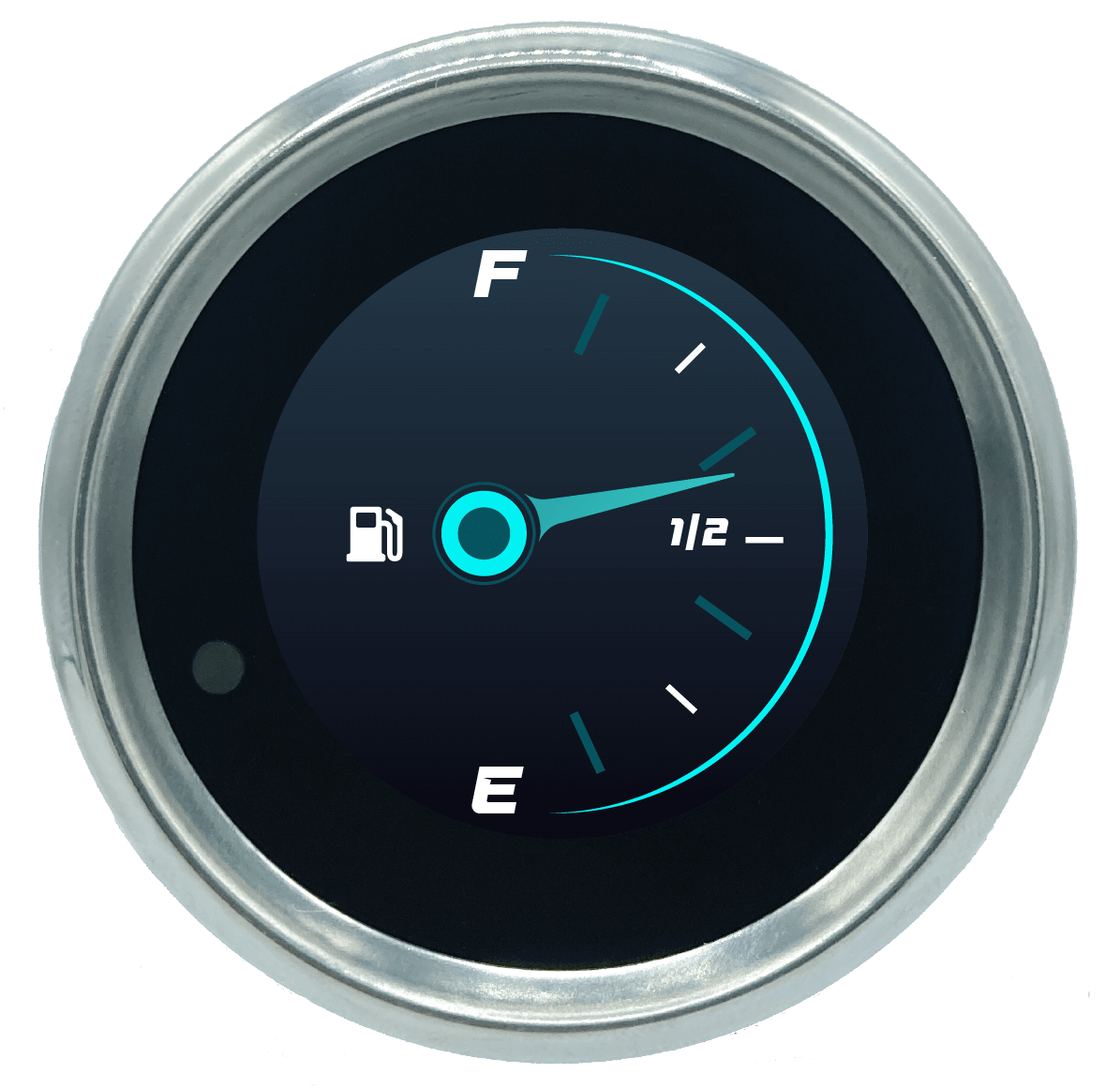

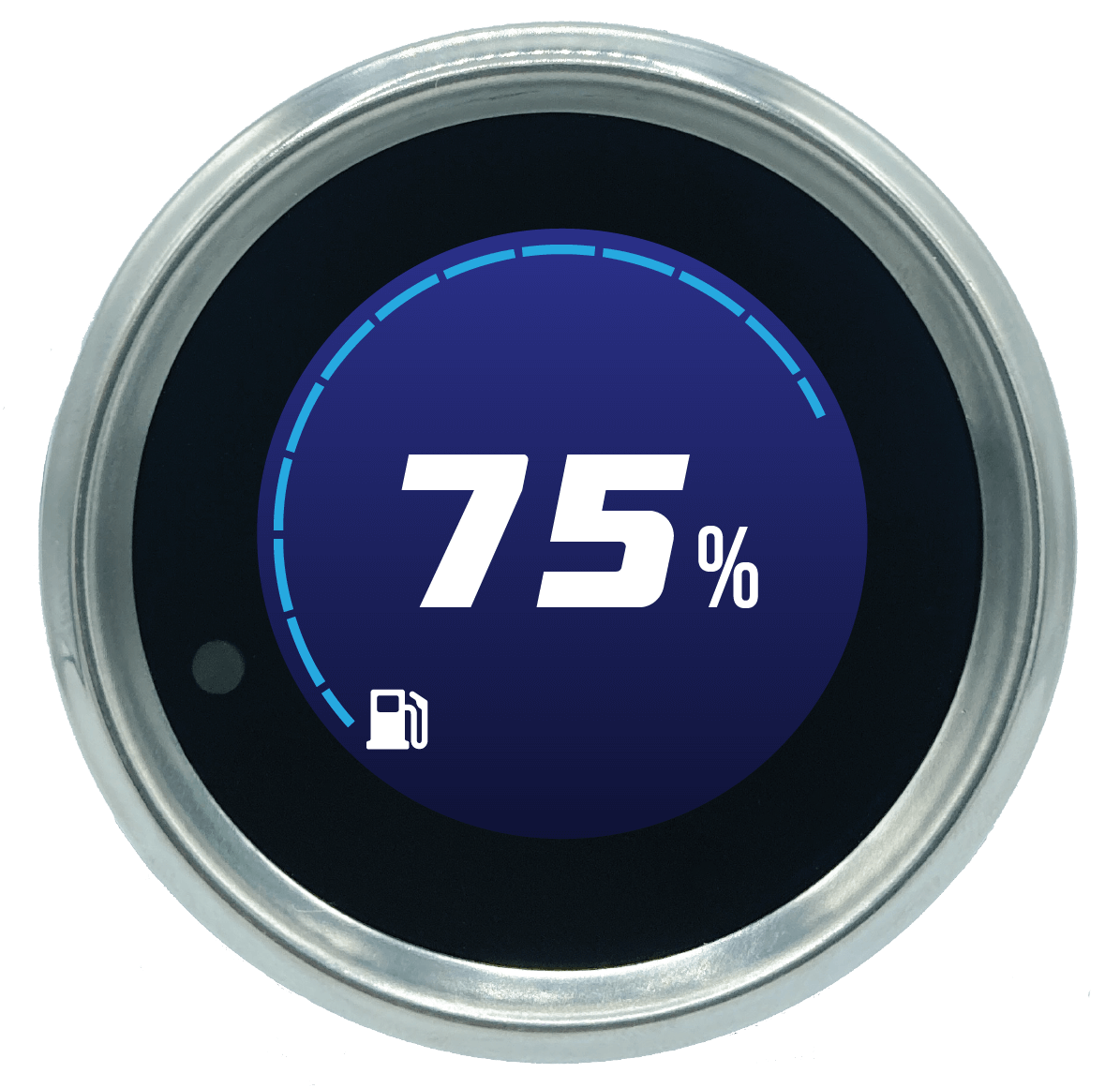

2” Digital Display
This intuitive, daylight-readable NMEA 2000 device offers seamless compatibility with Lowrance and Garmin N2K fuel flow sensors for gasoline-powered marine engines.
Designed for flexibility and performance, it delivers reliable data and smooth integration across a range of marine systems. It pairs best with the MG5K Display, providing a complete and connected monitoring solution for modern boaters.
Enables seamless wireless updates and device pairing.
Ensures clear visibility even in direct sunlight.
Built to withstand water, dust, and extreme conditions for maximum durability.
• USB Type-C Connector for Softwar Updated & User Configuration
• Customizable
• 2 Universal Inputs
• CAN Interface
• Conditional NMEA 2000® Compliant
• Ambiant Light Sensor
• External Memory
• STM32F412 Microcontroller TouchGFX Graphics Engine Library
• IP69K Rated to Withstand The Harshest of Environments
• 1000 Nit Sunlight Readble Display
• 180° Viewing Angle
• 240x240px 1.3” Round LCD Screen
• Full Color 18bpp
▪ Over 260k colors
• Optically Bonded
▪ Eliminates Fogging
• Multi-Touch PCAP
• UV Protective Coating
• Anti-Glare Treatment
| Feature | Criteria / Description |
|---|---|
| Mounting Hole (Dia) | 2.075″ |
| LCD | 1.28″ Round TFT, 240 × 240, Capacitive Touch, 1000 NIT |
| Ambient Light Sensor (ALS) | Optional |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Water Intrusion | IP69K Rated |
| Vibration | Vibration per MIL-STD-202, Method 201 |
| Salt Fog | 48 hours per ASTM B117-73 |
| Chemical Resistance | ISO 16750-5, Mounting Code B |
| UV Exposure | 1000 hours per SAE J2527, Table 2 |
| Input Voltage | 6 to 30 VDC |
| Current Consumption | 100 mA typical @ 12 VDC (base unit) |
| Reverse Polarity Protection | Yes |
| Under/Over Voltage Protection | Indefinitely at 0 and 60 VDC |
| User Interface | Capacitive Touch Screen |
| System Connector | 1× Deutsch DT06-6S or Amphenol AT06-6S (required harness side) |
| System Type | Embedded, STM32 Microcontroller |
| Memory | 8M Additional Flash for Graphics |
| Inputs & Outputs (Hardware Configurable) | 2× Hardware configurable (choose any 2): • Discrete (active low, up to 2 A) • PWM (input capture, up to 16 Vpk at 2 kHz) • Analog (0–5 VDC) |
| Additional IO Types | • Analog (9–16 VDC) • Resistive (30–240 Ω) • Digital (active low / active high) |
| CAN | 1× CAN FD @ 250, 500, or 1000 Baud. Supports J1939, NMEA 2000® |
| IMU (Accelerometer / Gyro) | Optional (6 DOF, ±2 g to ±16 g and ±125°/s to ±2000°/s ranges) |
| Compliance | RoHS |
